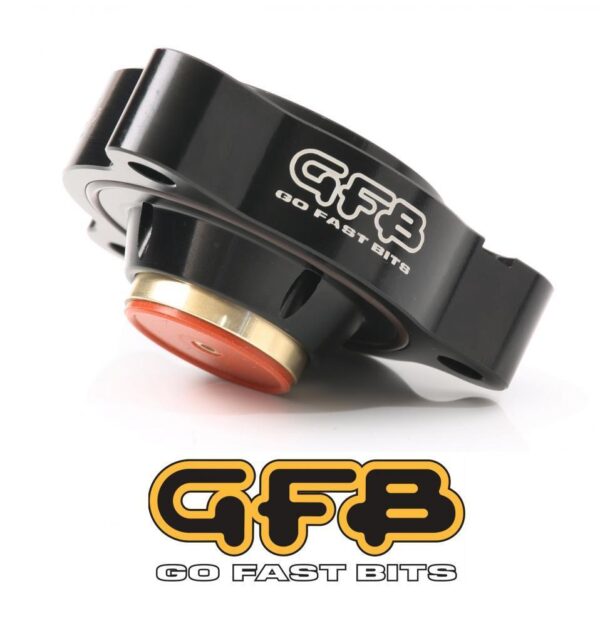

GFB T9356 BMW 535i F07/F10/F11 (N55 engine) 2010-on Performance Diverter Valve
$ 92.52
- Description GFB T9356 BMW 535i F07/F10/F11 (N55 engine) 2010-on Performance Diverter Valve Brand New Introducing the new DV Suits Dodge Dart, BMW and Fiat Abarth Applications GFB’s DV solution couldn’t be simpler – keep what works and replace what doesn’t. Worldwide Patent and Design Patent Pending Retains the factory solenoid coil for seamless integration Replaces plastic valve parts with metal for reliability and strength on chipped engines Direct-fit replacement with GFB’s TMS benefits Exclusive “pilot-actuated” valve mechanism for rapid response at high boost GFB expands the DV range with a direct-fit solution for the weak factory diverter valve used on many European vehicles. The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances. The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV story on the next page. feature-2 Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install. GFB’s DV solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds. Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to. However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings. feature-4 Common OE Problem #1 The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of chip tuning. feature-5 Common OE Problem #2 The plastic piston-type leaks far more than most people realise (by design, not from wear), and doesn’t always close after a high-boost gear shift. Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost. With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity – more of a compromise than a solution. GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag. The DV addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructable metal components ensures strength and reliability no matter how much boost you run. That’s not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn’t matter how much boost you push through it, the DV will open and close reliably without ever exceeding the solenoid’s capability. This feature also improves on the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response. Vehicle Application list BMW F13 235kw Petrol Engine RWD Coupe 11/10-on BMW F30, F80 225kw Petrol Engine RWD Sedan 04/11-07/15 BMW E82 225kw Petrol Engine RWD Coupe 10/07-10/13 BMW F15, F85 225kw Petrol Engine AWD Closed Off-Road Vehicle 11/13-on BMW F01, F02, F03, F04 235kw Petrol Engine RWD Sedan 07/12-12/15 BMW F20 235kw Petrol Engine RWD Hatchback 11/11-on BMW F21 75kw Petrol Engine RWD Hatchback 12/11-on BMW F30, F80 100kw Petrol Engine RWD Sedan 10/12-08/16 BMW F31 100kw Petrol Engine RWD Wagon 03/12-08/16 BMW E88 225kw Petrol Engine RWD Convertible 03/08-12/13 BMW F06 235kw Petrol Engine RWD Coupe 09/11-on BMW F32, F82 225kw Petrol Engine RWD Coupe 07/13-on BMW F30, F80 125kw Petrol Engine RWD Sedan 04/12-06/16 ABARTH 500 Abarth 2007-on (US Version only, others coming soon) 312 99kw Petrol Engine FWD Hatchback 08/08-on ABARTH 500 Abarth 2007-on (US Version only, others coming soon) 312 132kw Petrol Engine FWD Hatchback 08/14-on ABARTH 500 Abarth 2007-on (US Version only, others coming soon) 312 118kw Petrol Engine FWD Hatchback 01/14-on BMW 114i/116i/118i F20/F21 (N13 engine) 2011-15 F20 125kw Petrol Engine RWD Hatchback 11/10-on BMW 114i/116i/118i F20/F21 (N13 engine) 2011-15 F20 75kw Petrol Engine RWD Hatchback 11/11-on BMW 114i/116i/118i F20/F21 (N13 engine) 2011-15 F21 100kw Petrol Engine RWD Hatchback 12/11-on BMW 114i/116i/118i F20/F21 (N13 engine) 2011-15 F21 125kw Petrol Engine RWD Hatchback 07/12-on BMW 114i/116i/118i F20/F21 (N13 engine) 2011-15 F20 100kw Petrol Engine RWD Hatchback 12/10-on DODGE Dart 2012-on PF 119kw Petrol Engine FWD Sedan 01/13-12/13 DODGE Dart 2012-on PF 119kw Petrol Engine FWD Sedan 01/13-12/13 DODGE Dart 2012-on PF 119kw Petrol Engine FWD Sedan 01/13-12/13 DODGE Dart 2012-on PF 119kw Petrol Engine FWD Sedan 01/13-on BMW X3 xDrive35i F25 (N55 engine) 2010-on E70 225kw Petrol Engine AWD Closed Off-Road Vehicle 09/10-06/13 BMW X3 xDrive35i F25 (N55 engine) 2010-on F25 225kw Petrol Engine AWD Closed Off-Road Vehicle 09/10-on BMW 640i F06/F12/F13 (N55 engine) 2012-on F12 235kw Petrol Engine RWD Convertible 03/11-on BMW 335i/335i xdrive E90/E91/E92/E93 N55 2010-2012 E93 225kw Petrol Engine RWD Convertible 05/06-12/12 BMW 335i/335i xdrive E90/E91/E92/E93 N55 2010-2012 E92 225kw Petrol Engine RWD Coupe 11/05-12/12 BMW 335i/335i xdrive E90/E91/E92/E93 N55 2010-2012 E90 225kw Petrol Engine RWD Sedan 03/06-12/11 BMW X6 xDrive35i E71 (N55 engine) 2011-13 E71, E72 225kw Petrol Engine AWD Closed Off-Road Vehicle 06/07-06/14 BMW 535i F07/F10/F11 (N55 engine) 2010-on F10 225kw Petrol Engine RWD Sedan 01/09-07/15 BMW 535i F07/F10/F11 (N55 engine) 2010-on F11 225kw Petrol Engine RWD Wagon 11/09-12/17 BMW 535i F07/F10/F11 (N55 engine) 2010-on F07 225kw Petrol Engine RWD Hatchback 01/09-12/17 ABARTH Punto/Punto EVO Abarth 1.4 Multiair 199_ 114kw Petrol Engine FWD Hatchback 12/07-06/10 ABARTH Punto/Punto EVO Abarth 1.4 Multiair 199_ 132kw Petrol Engine FWD Hatchback 12/07-12/12 ABARTH Punto/Punto EVO Abarth 1.4 Multiair 199_ 120kw Petrol Engine FWD Hatchback 03/12-on ABARTH Punto/Punto EVO Abarth 1.4 Multiair 199_ 132kw Petrol Engine FWD Hatchback 03/12-on BMW M235i F22 (N55 engine) 2014-on F22, F87 240kw Petrol Engine RWD Coupe 10/13-on ABARTH Fiat Abarth Spider 124 2016-on 348_ 125kw Petrol Engine RWD Convertible 03/16-on ALFA ROMEO Giulietta 1.4TB 2010-on 940 125kw Petrol Engine FWD Hatchback 04/10-on ALFA ROMEO Giulietta 1.4TB 2010-on 940 88kw Petrol Engine FWD Hatchback 04/10-on ALFA ROMEO Giulietta 1.4TB 2010-on 940_ 110kw Petrol Engine FWD Hatchback 01/15-on JEEP Renegade 1.4 Multiair 14-on BU 103kw Petrol Engine FWD Closed Off-Road Vehicle 07/14-on
