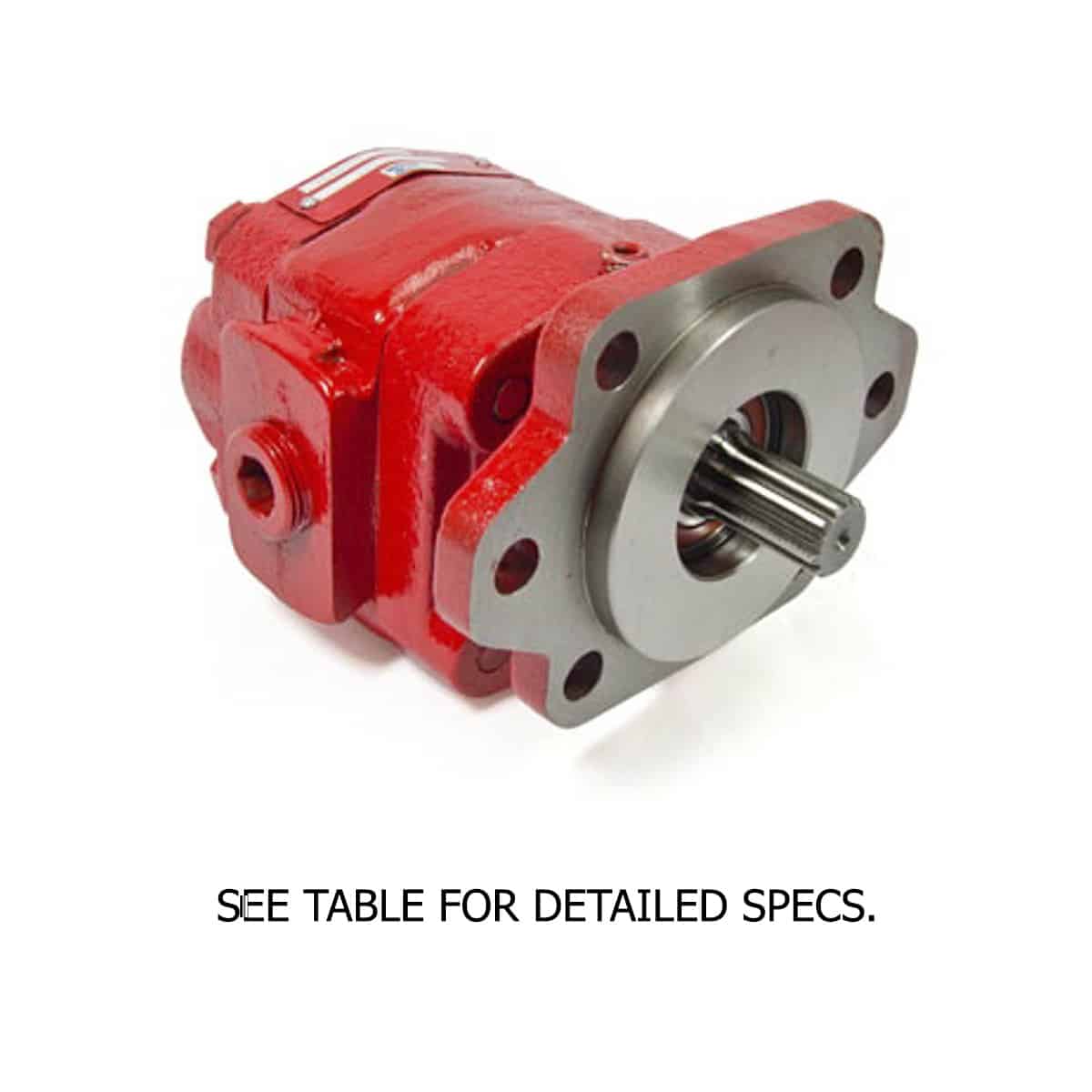

MK20 Hydraulic Motor
$ 93.80
- Match the SKU above with the SKU in this table to find detailed specifications on all MK20 style motor options. SKU MOUNT DISPLACEMENT SHAFT TYPE PORTING 15-MK20B08DNX 2/4 Bolt “B” Mounting (Bi-rotational) 8GPM @ 1000RPM 7/8″ 13 tooth splined 1″ NPT side porting & 1″ NPT rear porting 15-MK20B08DOX 2/4 Bolt “B” Mounting (Bi-rotational) 8GPM @ 1000RPM 7/8″ 13 tooth splined 1″ ORB side porting & 1″ ORB rear porting 15-MK20B11DNX 2/4 Bolt “B” Mounting (Bi-rotational) 11GPM @ 1000RPM 7/8″ 13 tooth splined 1″ NPT side porting & 1″ NPT rear porting 15-MK20B13DNX 2/4 Bolt “B” Mounting (Bi-rotational) 13GPM @ 1000RPM 7/8″ 13 tooth splined 1-1/4″ NPT side porting & 1″ NPT rear porting 15-MK20B13DOX 2/4 Bolt “B” Mounting (Bi-rotational) 13GPM @ 1000RPM 7/8″ 13 tooth splined 1-1/4″ ORB side porting & 1″ ORB rear porting 15-MK20B15DNX 2/4 Bolt “B” Mounting (Bi-rotational) 15GPM @ 1000RPM 7/8″ 13 tooth splined 1-1/4″ NPT side porting & 1″ NPT rear porting 15-MK20B15DOX 2/4 Bolt “B” Mounting (Bi-rotational) 15GPM @ 1000RPM 7/8″ 13 tooth splined 1-1/4″ NPT side porting & 1″ ORB rear porting 15-MK20B17DNX 2/4 Bolt “B” Mounting (Bi-rotational) 17GPM @ 1000RPM 7/8″ 13 tooth splined 1-1/4″ NPT side porting & 1″ NPT rear porting 15-MK20B17DOX 2/4 Bolt “B” Mounting (Bi-rotational) 17GPM @ 1000RPM 7/8″ 13 tooth splined 1-1/4″ ORB side porting & 1″ ORB rear porting The MK20 Hydraulic Motor features: Bi-Rotational Pressures up to 3000 psi Speeds up to 2400 rpm Dual porting – side & rear, NPT or ORB Mounting Flange – 2/4 Bolt, SAE “B” Options include: 7 Displacements, 2 Shaft options, 2 porting types
